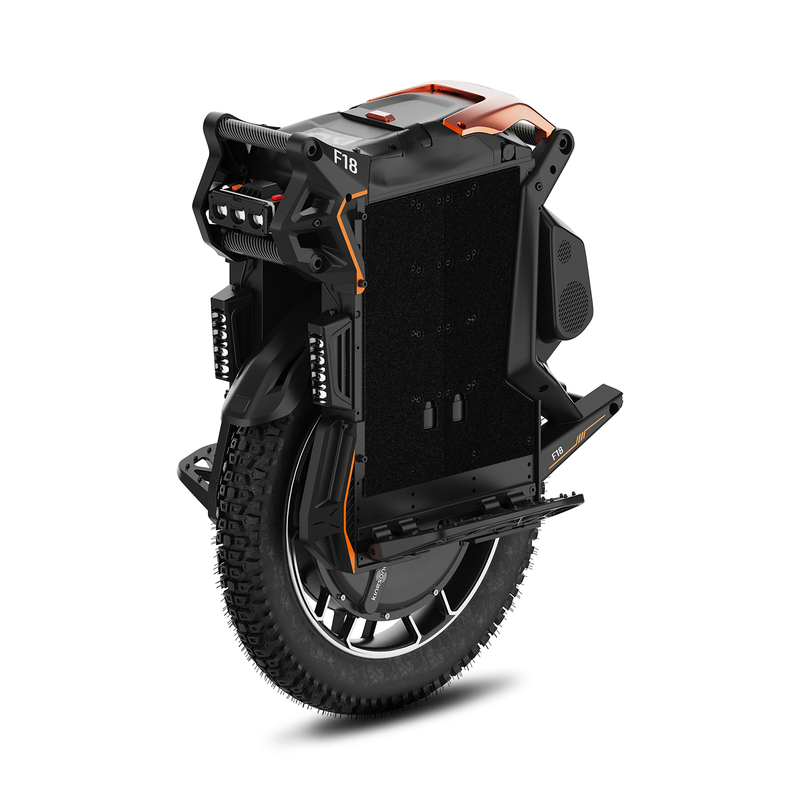

King Song F18 Elektro-Einrad – 9000W Motor, 160KM Reichweite, Offroad-EUC
High-performance long-range EUC
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
- Rated power5000W
- Peak output13000W
- Battery2664Wh Samsung 50S
- Suspension100mm Quad
- Fast charge20A Dual
- ServiceModular Motor
- 5000W Rated Power: 5000W rated / 9000W peak motor with modular quick-release architecture for confident climbing and easier service.
- 2664Wh Samsung 50S Battery: Ride up to 93 miles / 150km with Smart BMS battery protection.
- 100mm Quad Suspension: Four-point adjustable suspension delivers control and comfort across trails, broken pavement, and technical terrain.
- Dual 20A Fast Charging: Reach approximately 80% charge in under two hours with up to 3020W charging power.
- Race-Proven Control: A championship-winning platform built for speed, stability, and demanding off-road riding.
Features at a Glance
<strong>9000W Leistung · 160KM Reichweite · Pro Federung · Gebaut für extremes Off-Road-Fahren</strong>
- Leistung & Geschwindigkeit
9000W C38 Motor mit hohem Drehmoment und hohen Geschwindigkeiten, entwickelt für extreme Off-Road- und Rennbedingungen.
- Akku & Laden
2700Wh Samsung 50S Akku mit Smart BMS, unterstützt Schnellladung bis zu 20A / 3020W, 80% Ladung in unter 2 Stunden
- Federung & Komfort
DNM Vierkolbenfederung mit einstellbarer Dämpfung und Vorspannung, bietet eine ruhige Fahrt in unwegsamem Gelände.
- Rahmen & Haltbarkeit
Magnesiumlegierungsrahmen, 28% leichter als Aluminium mit >50% höherer Streckgrenze, wasserdichtes und ergonomisches Design mit Polstern & Scheinwerfer.
- Komfort & Extras
Schneller Reifenwechsel in 5 Minuten, Bluetooth-Musik, USB-C-Ladefunktion, verstellbare Pedale, integrierter Trolley-Griff, Find My Network-Unterstützung.
What's in the box
EUC*1
Charger*1
manual*1
pump*1
In Stock — Estimated delivery in 3–7 business days.
KingSong F18 Elektro-Einrad – 9000W Motor, 160KM Reichweite, Offroad-EUC
Technical specifications
-
Rated PowerPeak PowerMax TorqueMax Climbing AngleBatterySpeedRangeCharging TimeTire SizeSuspensionBraking SystemFrame MaterialSmart FeaturesFind MyIP RatingLighting SystemNet WeightMax LoadDimensions
Built Different. Proven in Competition.
A modular all-terrain flagship built for experienced riders—engineered for control, power and long-distance performance.
Race Proven
Proven Under Pressure.
Competition exposes instability, heat, weak suspension response and limited power reserve quickly. F18 has been ridden to wins by KingSong race riders across demanding off-road terrain.
Matt Burt — 2026 King of the Motos Overall Champion
Joshua — 1st Place Off-Road Race
Quad Suspension · 13000W Peak · 2664Wh Endurance

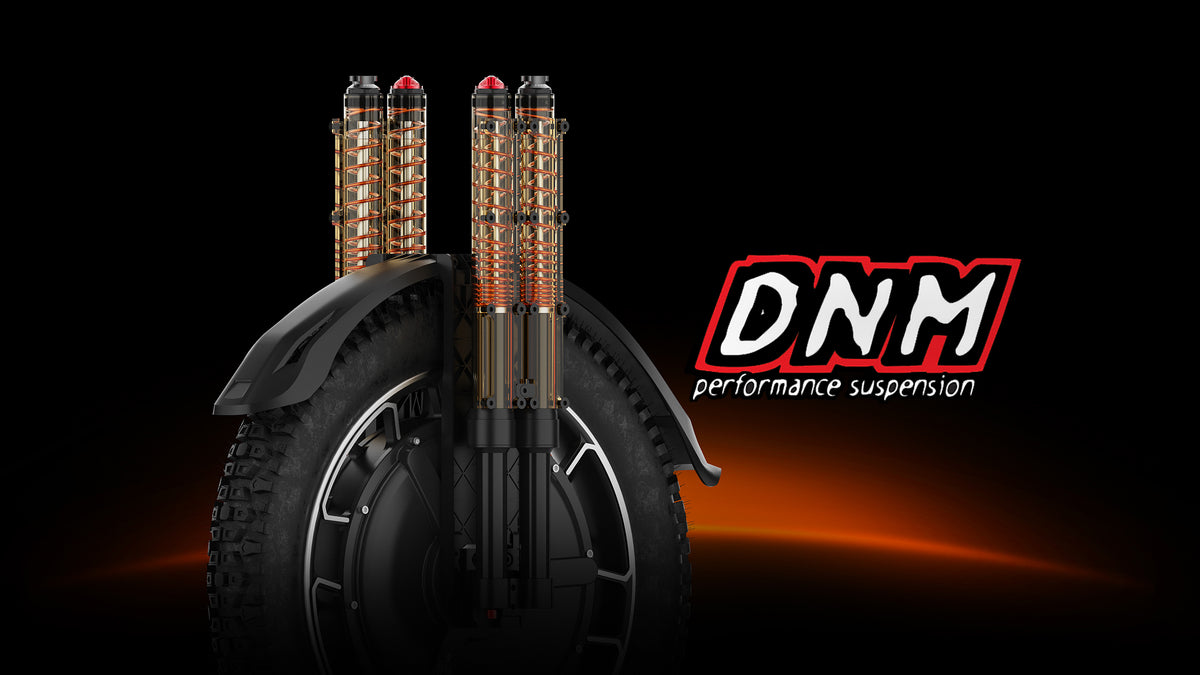

Quad DNM Suspension
Four Points. More Control.
100mm of suspension travel across four DNM dampers helps keep the F18 composed through rough terrain, repeated impacts and high-speed riding.
Tune It Your Way.
Adjust compression, rebound and preload to match rider weight, terrain and riding style.
100 mm
Suspension Travel
4 × DNM
Suspension Layout
Adjustable
Compression · Rebound · Preload
Less Fatigue
Across Repeated Impacts
Power reserve
Power Without Hesitation.
F18 pairs sustained output with headroom for hard acceleration, steep climbs, fast exits and technical terrain. The benefit is not a bigger number—it is usable reserve when conditions demand more from the wheel.
High-Voltage Architecture
Power Starts with the System.
A 133.2V architecture and 100A current capability give the F18 the electrical headroom for strong, responsive power delivery.
133.2V Nominal Voltage
A high-voltage platform designed for efficient, sustained power delivery across demanding rides. It helps the F18 maintain strong output while reducing electrical losses, giving the system more usable energy for acceleration, climbs and extended off-road performance.
100A Current Capability
Built to deliver energy quickly through hard acceleration, steep climbs and demanding terrain. The high-current system gives the motor the electrical support it needs to respond immediately, helping the F18 maintain confident, controlled power when riding conditions become more demanding.
13,000W Peak Power
High-output electrical architecture provides the reserve to respond when riding demand spikes. With substantial peak power available, the F18 can deliver rapid acceleration, strong hill-climbing performance and immediate response without relying on a short burst of power alone.

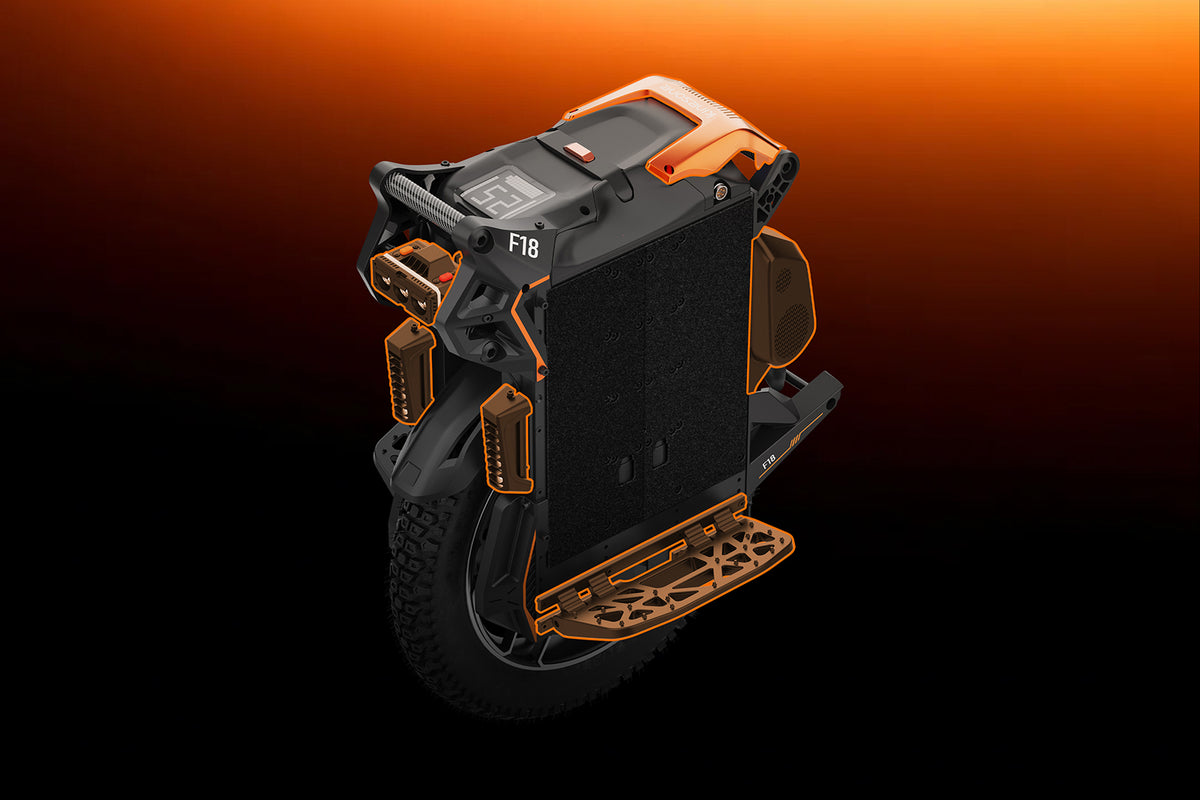

Modular Architecture
Built to Evolve.
F18 uses a modular architecture with quick-connect systems across key components—making service, tire changes and future upgrades easier.
Approx. 2-Minute Motor Removal
Independent Motor, Lighting, Audio & Display Modules
Replace Only What Needs Service
Built for Upgrades & Customization
Performance in Motion
Control When It Matters.
Power and suspension matter because of what they let the rider do: hold a line at speed, stay composed through repeated hits and recover cleanly when the trail gets unpredictable.
High-Speed Stability
A planted chassis and quad suspension help keep the F18 steady as speed builds.
Rough-Terrain Control
100mm suspension travel helps maintain control through roots, gravel and broken surfaces.
Landing Composure
Four-point suspension helps absorb hard compression and settle the wheel quickly after drops and jumps.
Battery & Endurance
Built to Go the Distance.
2664Wh of Samsung 50S energy, smart battery protection and up to 20A fast charging keep the F18 ready for long ride days.
Range

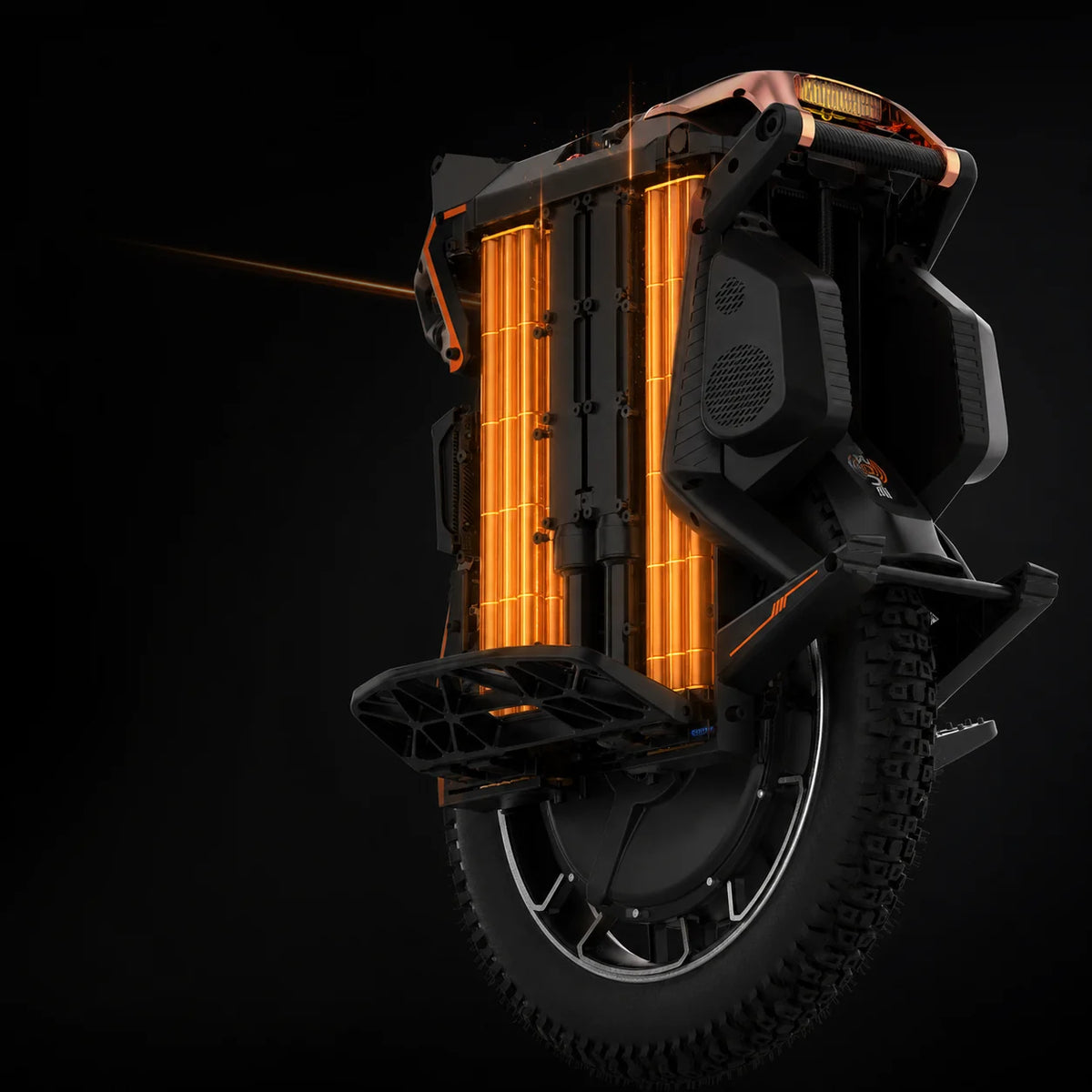

2664Wh Samsung 50S
144 Samsung 50S 21700 cells deliver the energy for up to 93 miles / 150 km of range.
BATTERY PROTECTION
Smart BMS
Real-time battery monitoring with balancing, overcharge, overcurrent, over-discharge, short-circuit and temperature protection.
FAST CHARGING
20A Dual-Port Charging
The included 10A charger takes approximately 2–3 hours. Dual-port charging supports up to 20A for approximately 1–1.25 hours.
Terrain Setup
Set It Up Your Way.
Choose the tire and pedal setup that fits your terrain, stance and riding style. Fine-tune your setup for a more natural, secure and responsive ride.

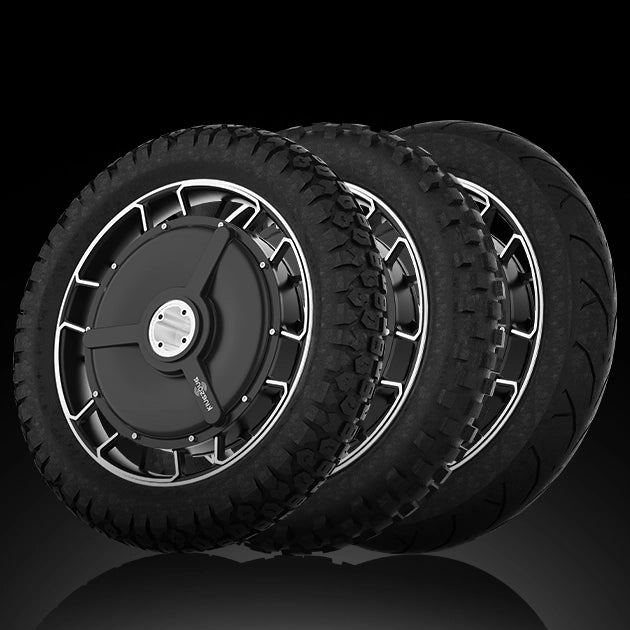

TIRE SETUP
Street, Mixed or Trail
Multi-tire compatibility lets you choose between street efficiency, mixed-surface versatility and off-road grip. Select the setup that matches your route, from smooth daily commutes and paved paths to changing terrain, loose surfaces and more demanding trail conditions.
RIDER STANCE

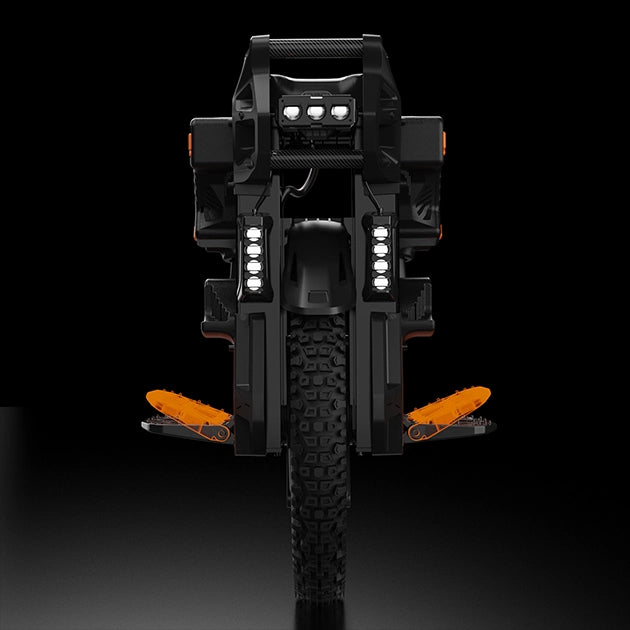

Adjustable Spiked Pedals
Adjustable height and 6°–8° pedal angle help tune clearance and stance, while the spiked surface keeps your footing secure. Set the platform to suit your riding position, improve control through turns and maintain a confident connection when the terrain gets rough or the pace picks up.

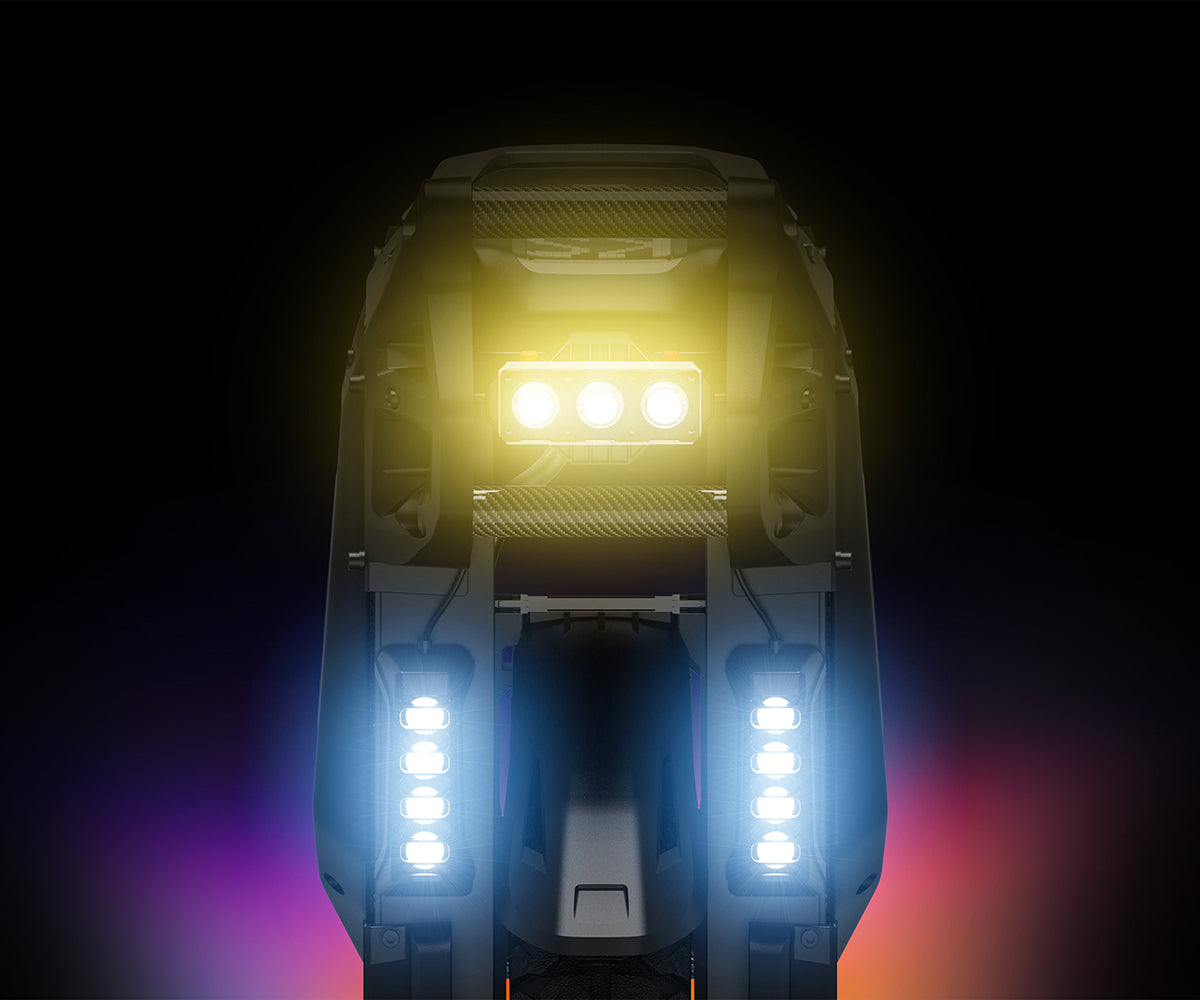

Night Ride Visibility
See more. Be seen.
A 30W main headlight and 12W auxiliary light improve forward visibility, while brake, turn and RGB rear lighting keep the F18 visible after dark.
30WMain Headlight
12WAuxiliary Lighting
Brake + TurnRear Signaling
RGBRear Visibility Lighting
More F18 Features
More Capability in Every Layer.
Smart security, connected controls, protection systems and everyday details round out the F18 platform.

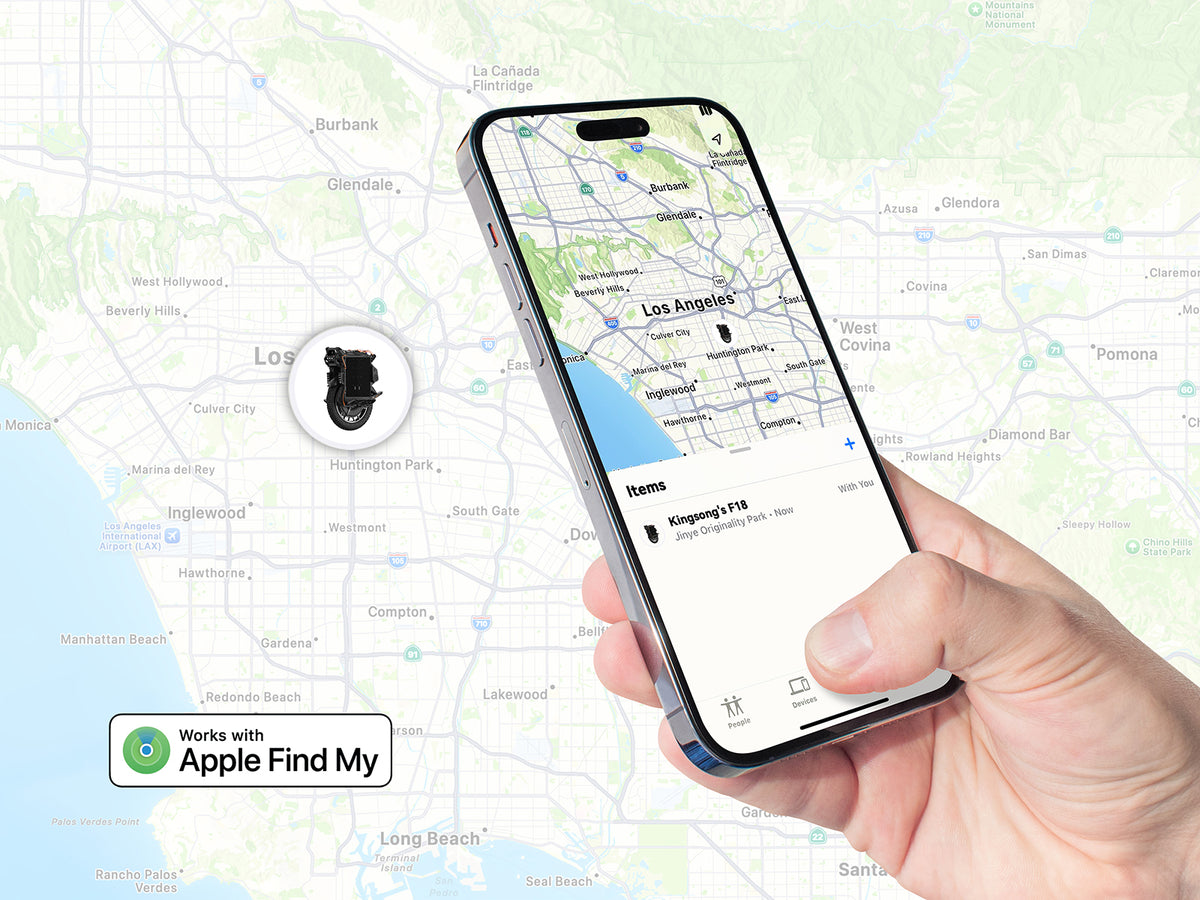

Apple Find My
Locate your F18 through the Apple Find My network for an added layer of tracking when the wheel is away from you.
KingSong App + Motor Lock
Check ride data and EUC status, adjust supported settings and lock the motor through the KingSong App when parked.

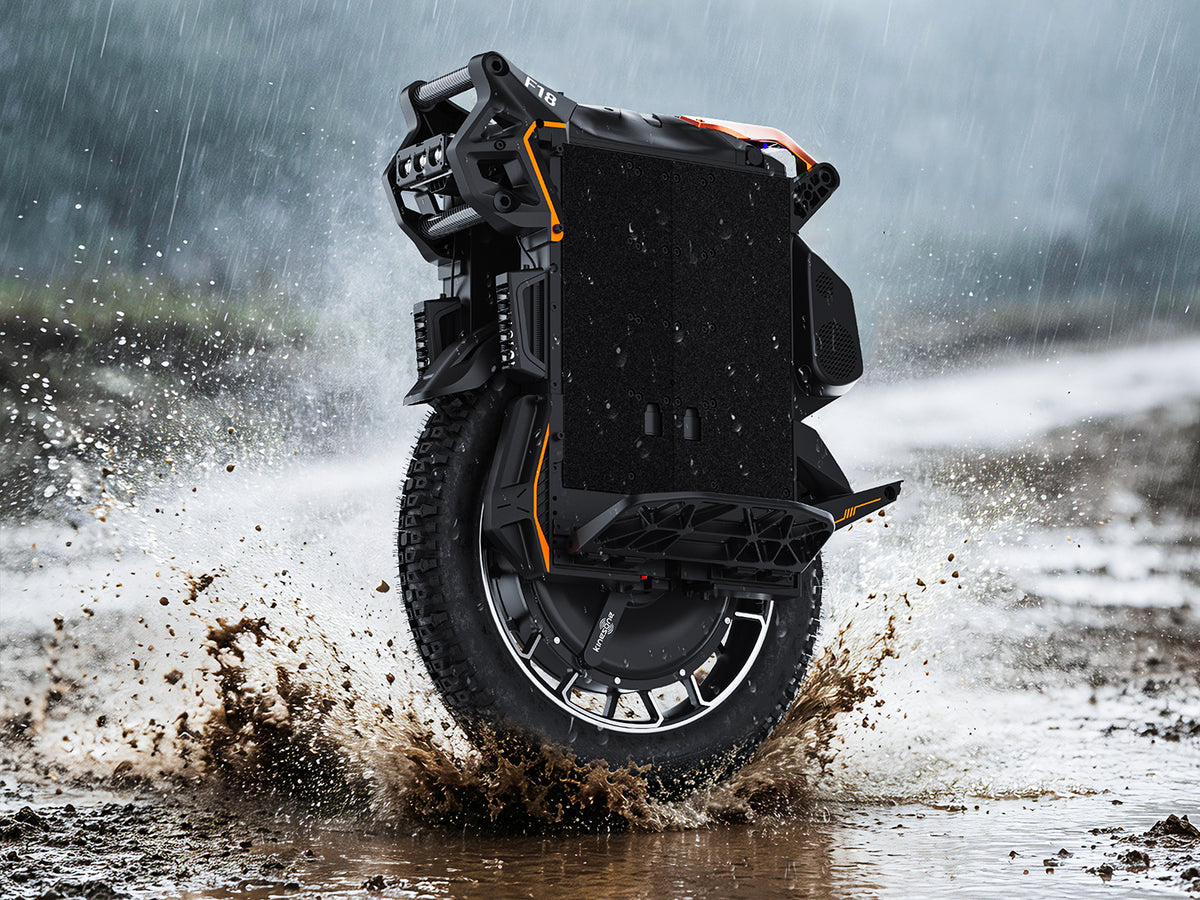

IPX6 Water Resistance
IPX6 protection helps the F18 handle rain, splashes and powerful water jets when riding conditions change.
20-Inch All-Terrain Platform
The full-size wheel platform delivers a stable, planted feel across speed, uneven pavement and changing terrain.
System-Wide OTA Support
Mainboard, Smart BMS and display firmware support Bluetooth OTA updates, keeping the F18 platform ready for future improvements.

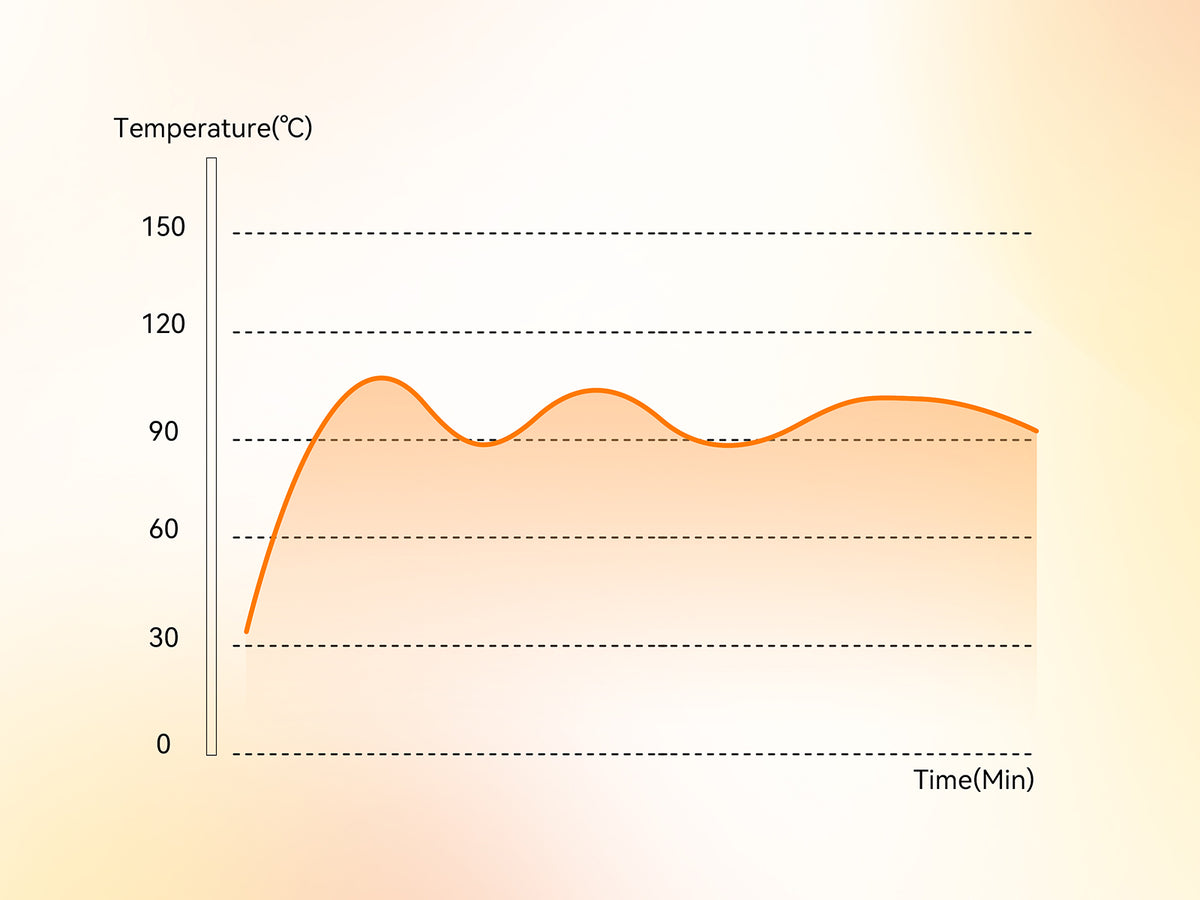

Temperature Monitoring
Motor, controller and battery temperatures are continuously monitored, with protective responses at critical temperature thresholds.

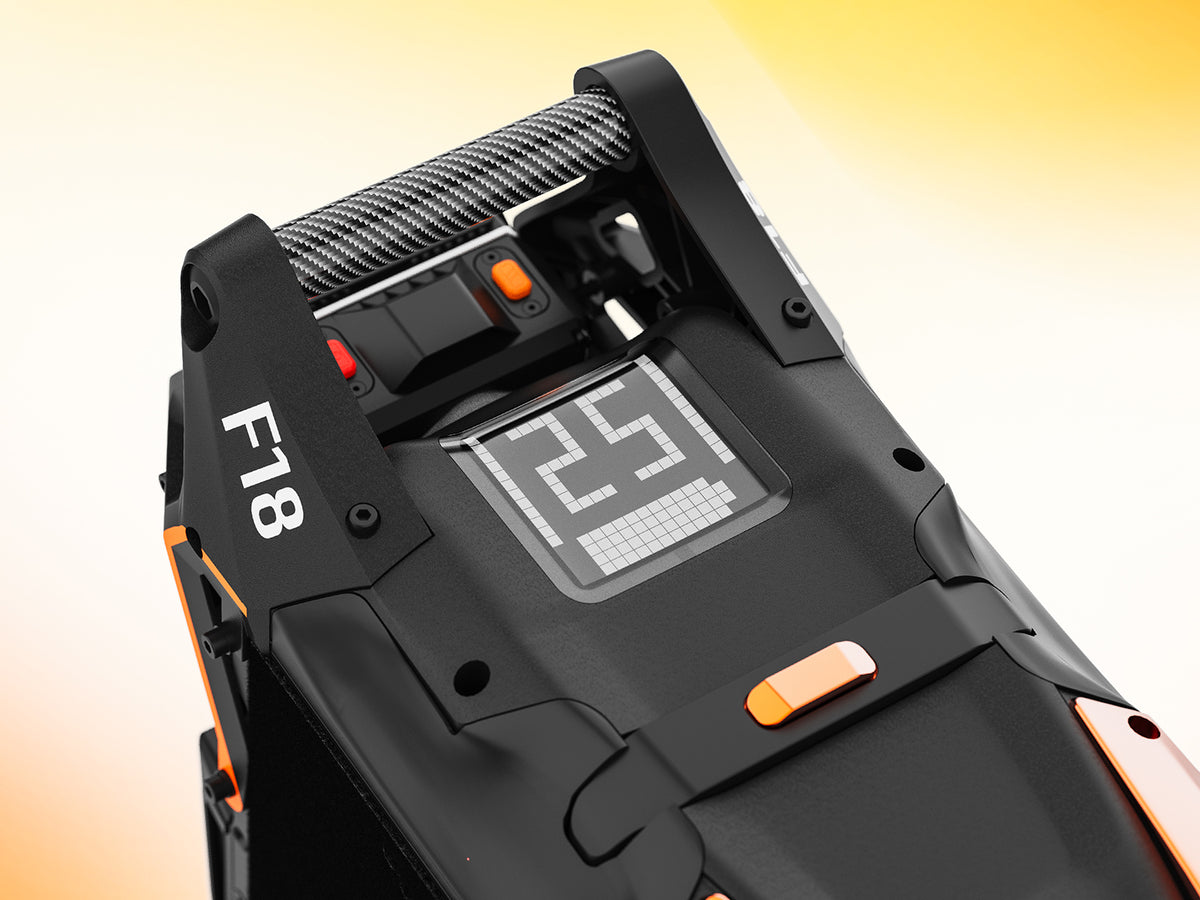

16 × 16 Dot-Matrix Display
See speed, battery status, fault information and visual alerts directly on the wheel, even while riding.

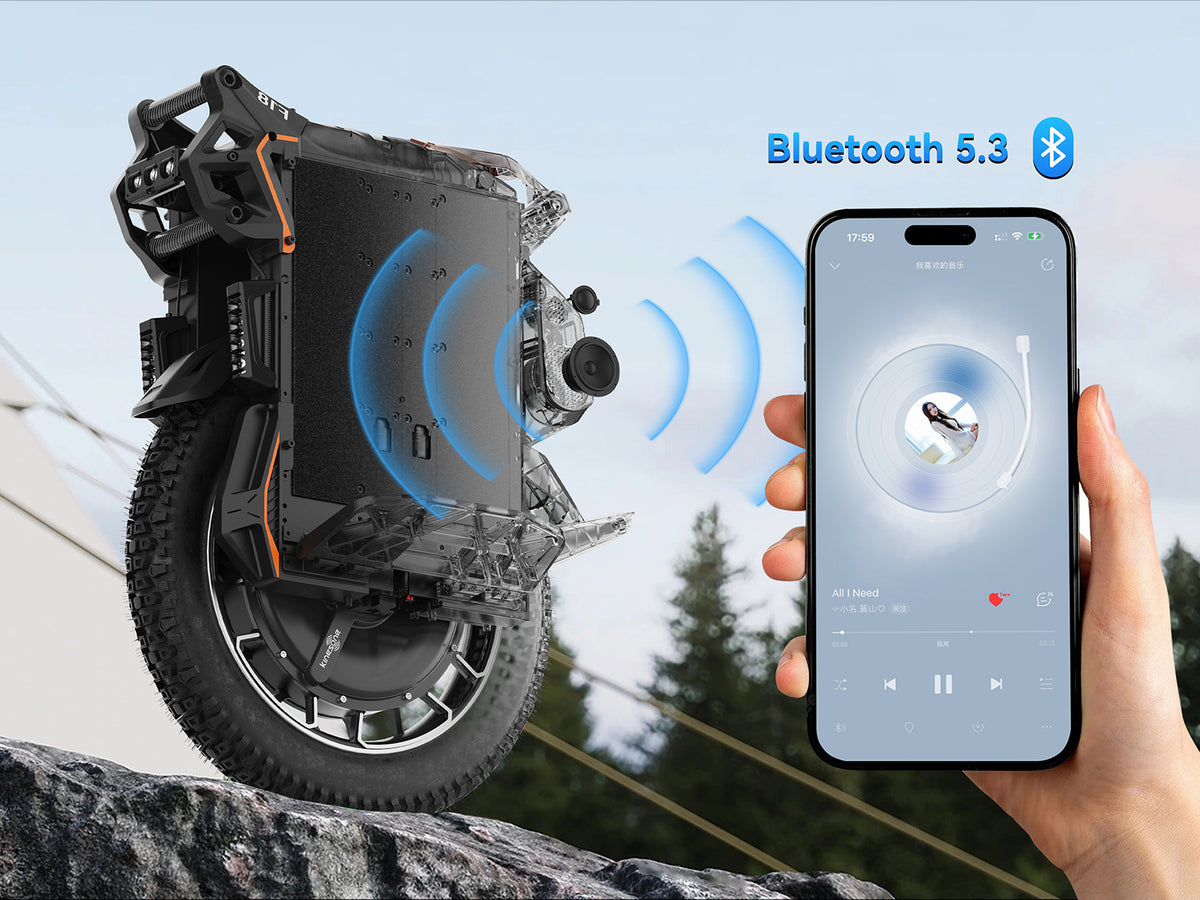

Bluetooth Stereo System
Dual-channel speakers combine dedicated bass and high-frequency drivers for powerful, built-in stereo sound.
Built for Easier Handling
Carbon-fiber front and rear handles, an independent trolley handle and a built-in kickstand make the F18 easier to move and park.
XT60 Power Output
An integrated XT60 high-power output expands the F18 beyond riding, providing an external power connection when needed.
F18 Race Record
Ridden to the podium.
F18 is not waiting for a future test program to prove its point. KingSong race riders are already using the platform in demanding off-road competition—and winning.
2026 King of the Motos — Overall Champion
Matt Burt — 2 Race Wins on KingSong F18
Joshua — 1st Place Off-Road on KingSong F18
Specifications
Performance & Range
Rated Power
5000 W
Peak Power
13,000 W
Max Speed
67 mph / 108 km/h
Max Torque
320 N·m
Climbing Capability
45° / 84%
Range
93 mi / 150 km
Voltage
133.2V
Battery
2664Wh / 144 × Samsung 50S 21700
Charging
2-3 Std.
Ride & Control
Tire Size
20 in All-Terrain Tire / 2.75-14
Suspension
100 mm
Pedal Angle
8°–14° Adjustable
Max Load
140 kg
Net Weight
90 lb / 41 kg
Frame Material
Aluminum Alloy
Smart & Safety
Lighting System
30W Headlight, Brake Light, Turn Signals & Ambient Lighting
RGB Light
Rear RGB + Brake + Turn Lighting
Bluetooth Speaker
Bluetooth 5.3 Stereo
Find My
Wo ist mein
IP Rating
IPX6
Display
16 × 16 Dot-Matrix
OTA Updates
Mainboard / Smart BMS / Display
Smart Features
KingSong App / Motor Lock / Smart BMS / OTA Updates

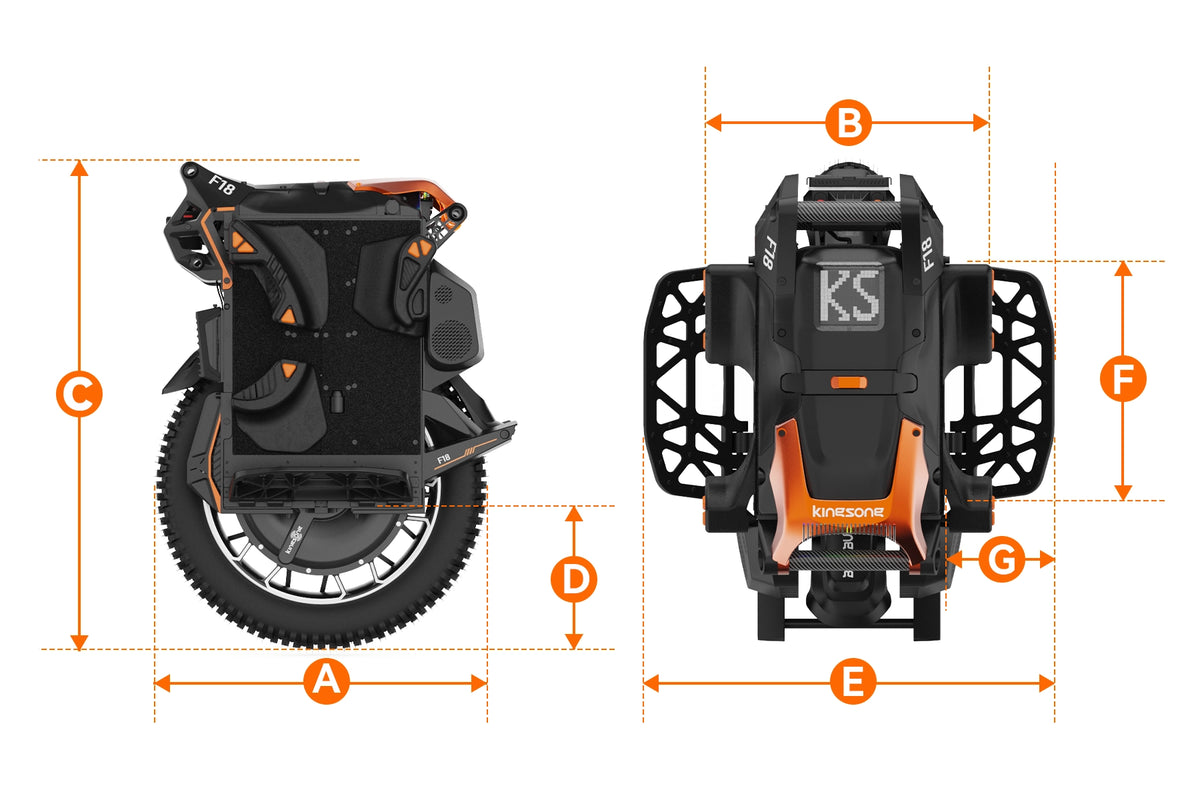

Dimensions
Overall Length
55 cm
Overall Height
75.5 cm
Overall Width
34 cm
Pedal Height
26 cm
Overall Width — Pedals Unfolded
50 cm
Pedal Length
28 cm
Pedal Width
11.5 cm
Performance & Range
Rated Power
5000 W
Peak Power
13,000 W
Max Speed
67 mph / 108 km/h
Max Torque
320 N·m
Climbing Capability
45° / 84%
Range
93 mi / 150 km
Voltage
133.2V
Battery
2664Wh / 144 × Samsung 50S 21700
Charging
2-3 Std.
Ride & Control
Tire Size
20 in All-Terrain Tire / 2.75-14
Suspension
100 mm
Pedal Angle
8°–14° Adjustable
Max Load
140 kg
Net Weight
90 lb / 41 kg
Frame Material
Aluminum Alloy
Smart & Safety
Lighting System
30W Headlight, Brake Light, Turn Signals & Ambient Lighting
RGB Light
Rear RGB + Brake + Turn Lighting
Bluetooth Speaker
Bluetooth 5.3 Stereo
Find My
Wo ist mein
IP Rating
IPX6
Display
16 × 16 Dot-Matrix
OTA Updates
Mainboard / Smart BMS / Display
Smart Features
KingSong App / Motor Lock / Smart BMS / OTA Updates
Dimensions
Overall Length
55 cm
Overall Height
75.5 cm
Overall Width
34 cm
Pedal Height
26 cm
Overall Width — Pedals Unfolded
50 cm
Pedal Length
28 cm
Pedal Width
11.5 cm
Before You Ride
Questions, Clearly Answered.
Key answers on F18 performance, range, setup, charging, ownership and support.
F18 ownership
Know the platform before you push it.
F18 is a 90-pound high-performance wheel built for experienced riders—not a beginner training EUC.
Who is the F18 designed for?
F18 is designed for experienced, performance-focused EUC riders who want high power, long range, adjustable suspension and serious all-terrain capability. At approximately 90 lb with a maximum riding speed up to 67 mph, it is not intended as a beginner training wheel.
How much power does the F18 have?
F18 uses a 5000W rated motor with up to 13,000W peak power and 320 N·m of maximum torque. Its 133.2V architecture and 100A system current capability provide the electrical headroom for hard acceleration, steep climbs and demanding terrain.
How fast can the F18 go?
The F18 has a published maximum riding speed of up to 67 mph / 108 km/h. Actual available speed varies with rider weight, battery level, firmware settings, temperature, terrain and riding conditions.
How adjustable is the F18 suspension?
F18 uses four DNM dampers with 100mm / 3.9 in of suspension travel. Riders can adjust compression, rebound and preload, with 25-step damping adjustment for different rider weights, terrain and riding styles.
What real-world range should I expect?
F18 has a published maximum range of up to 93 miles / 150 km under ideal conditions. Actual range varies significantly with riding speed, rider weight, terrain, elevation, temperature, tire pressure, wind and riding style.
How long does the F18 take to charge?
With the standard 10A charging setup, a full charge takes approximately 2–3 hours. Dual-port charging supports up to 20A and can reduce charging time to approximately 1–1.25 hours with a compatible charging setup. A second charger is required for dual-port charging and must be purchased separately.
Is the F18 battery removable or swappable?
The F18 battery uses independently arranged internal battery sections for service and protection, but it is not designed as a quick-swap consumer battery. Battery service should follow KingSong procedures and be handled by qualified personnel.
Can the F18 be set up for both street and off-road riding?
Yes. F18 supports compatible tire setups for street, mixed-surface and off-road riding. The adjustable pedal height and 6°–8° pedal angle also allow riders to tune stance and ground clearance.
How heavy is the F18 and what load does it support?
F18 weighs approximately 90 lb / 41 kg and supports riders up to 309 lb / 140 kg. Integrated front and rear handles, a trolley handle and built-in kickstand make the wheel easier to move and park when you are not riding.
What does the F18 modular architecture make easier?
The F18 uses independently serviceable modules for major systems including the motor, lighting, display, audio and control components. The motor is designed for approximately two-minute removal, helping simplify tire service and component replacement.
Does the F18 support Apple Find My and the KingSong App?
Yes. Apple Find My provides location tracking through Apple's Find My network. The KingSong App provides supported ride data, vehicle status, settings and motor locking.
Is the F18 waterproof?
F18 is rated IPX6 for water resistance. It is designed to withstand rain, splashes and powerful water jets, but it is not rated for submersion. Avoid flooded roads, pressure washing and charging the wheel while wet.
What warranty does the F18 include?
F18 includes a 12-month whole-vehicle warranty for eligible manufacturing issues under normal use. Coverage can exclude crash damage, water damage, misuse, unauthorized modifications and improper repairs. Refer to the warranty policy for full terms and regional service coverage.
